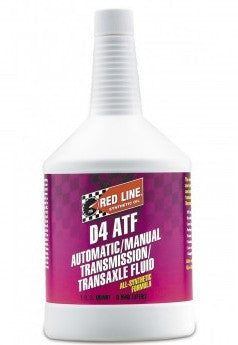

Red Line D4 ATF - 1 qt (946ml)

Red Line D4 ATF - 1 qt (946ml)

Little Red Car Shop

  • $2450


  • Our most versatile ATF, use where Dexron III®, Dexron II®, Mercon® and Mercon V® fluids are recommended, provides a GL-4 level of gear protection
  • Popular applications: Toyota Type T-III and T-IV, Honda ATF-Z1, NissanMatic D, J & K, Diamond SP-II, SP-III, Mazda ATF M-V, most BMW, Audi, VW automatic transmissions
  • Also used with manual transmissions and transaxles like T-5, T-45, T-56 and late-model BMW
  • Excellent cold weather operation

TYPICAL PROPERTIES

Vis @ 100°C, cSt

7.5

Vis @ 40°C, cSt

34

Viscosity Index

198

Pour Point, °C

-60

Pour Point, °F

-76

Flash Point, °C

225

Flash Point, °F

437

Brookfield Vis @ -40°C, P

52



MORE TECHNICAL INFORMATION

D4 ATF is a fully-synthetic product designed with superior low-temperature properties compared to a Dexron III® fluid, and the improved shear-stability requirements which is part of the Mercon V® specifications.

D4 ATF also provides a GL-4 level of gear protection, making it a superior product for transmissions and transaxles. The balanced frictional characteristics provides smooth and consistent shifts for extended drain intervals. The superior stability compared to petroleum ATFs allows high-temperature operation without varnishing valves and clutches which leads to transmission failure.

Suitable replacement for the following products:

  • Dexron II®, III® and Dexron IIIH®
  • Mercon® and Mercon V®
  • Esso LT71141
    • (BMW, 93 on 3, 5 and 7 series ZF 5HP transmissions)
    • (VW/Audi automatic from 1993)
  • Shell LA2634
  • (BMW Automatic 98-00 3 series, 94-95 5 series, 98-00 528, 94-00 7 and 8 series) ​
  • (Mercedes 5&6 sp, Jeep NAG-1, Porsche & Jaguar Automatic)
  • (BMW 01 3 series Xi, X5 3.0, Z3, 98-05 3 series, w/ GM5, 99-00 5 series w/GM5, 04-08 X3 w/GM5)
  • (BMW 00-05 5 series & X5 w/ GM5)
  • Shell ATF 3403 M115
  • (Honda/Acura automatic)
  • (Mitsubishi, Hyundai and Kia automatic)
  • (Subaru 05 on WRX, Impreza, Legacy, Outback, Tribeca & 06 on Forester)
  • Texaco ETL7045
  • (03 on Mazda6, 04 on Mazda3, 06 on Mazda5, 06 on Ford Fusion w/FNR5 automatic transaxle)
  • (96-'97 Supra Turbo, '98 Supra, '00 on Echo, Celica, '01-'03 Prius, '01-'03 Prius, '02-'05Camry and 4-cyl. Solara, Rav 4-4WD '01-'04 Highlander, Rav4, '03-'04 Sequoia, Tundra, Tacoma 2.7L, 3.4L, '03-'04 4-Runner w/4 speed,'03 Land Cruiser, '05 Tacoma)
  • (Volvo '01 to '04 C70, '01 on S40, V40, S60, S60R, '99 on V70, V70R and XC70 w/AW50AWD or AW55-50SN transaxle)
  • Texaco ETL8072 B
  • Idemitsu K17 (Jatco 3100) WSS-M2C922-A1
  • Honda ATF Z1
  • Diamond SP-II & SP-III
  • Castrol Transmatic J, Transmax J, Transmax E, Pennsoil ATF J, Idemitsu HP, Subaru ATF-HP
  • NissanMatic D, J & K
  • Mazda ATF M-V
  • Mobil ATF 3309, JWS 3309, Toyota T-IV and T-III, T3, T4, ATF JWS 2312D, 3314, 3317. Aisin-Warner applications
